| 材質 | 陶瓷+橡膠 |
|---|---|
| 是否定做 | 可以 |
| 產地 | 淄博 |
| 品名 | 陶瓷橡膠復合板 |
| 形態 | 層狀 |
| 應用范圍 | 物料輸送設備做防磨內襯 |
| 執行質量標準 | 國標 |
| 品牌 | 宇邦sinoshine |

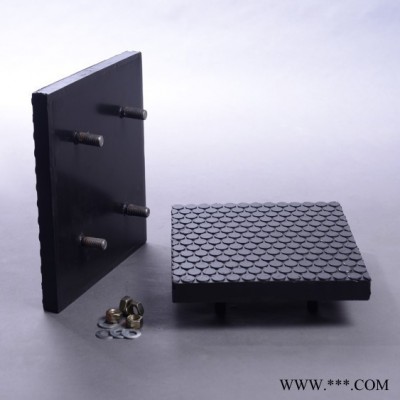

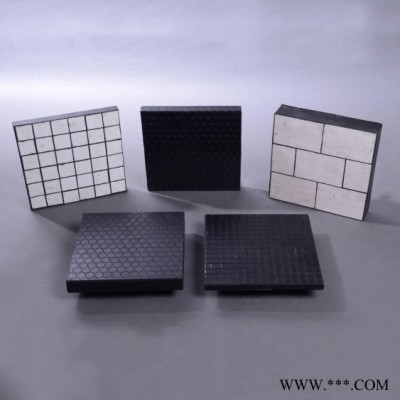

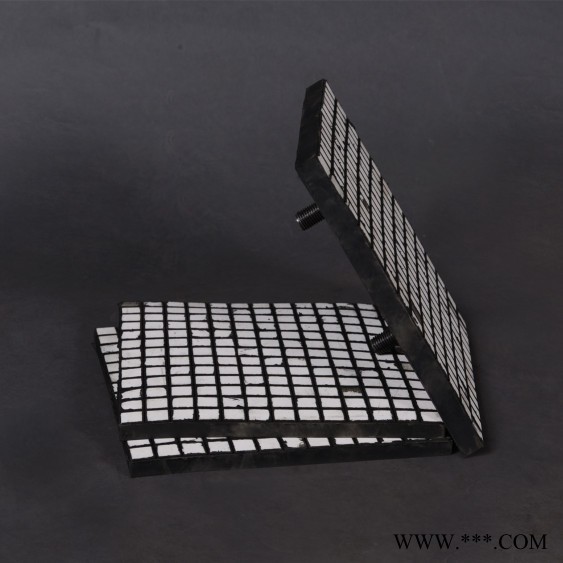

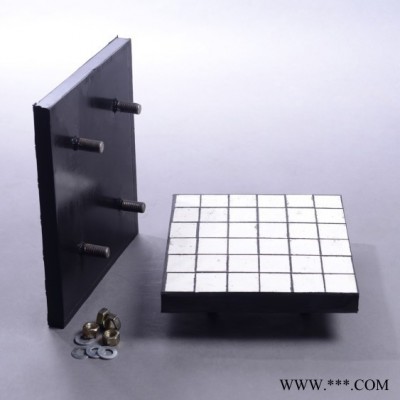

陶瓷橡膠復合板
Rubberbacked ceramic sheets
產品特性/ Characteristics:
將硬度僅次于金剛石的92%或95%含量氧化鋁陶瓷片硫化到橡膠或聚氨酯中。氧化鋁陶瓷增強設備的耐磨性，橡膠起到緩沖物料的作用。在苛刻的磨損條件下這種陶瓷橡膠復合板內襯能延長設備的使用壽命，氧化鋁陶瓷阻力小使物料流動順暢，減少物料運行時間。
陶瓷橡膠復合板由于橡膠的減震作用具有較強的抗沖擊性能，同時能有效降低設備運行的噪音。帶螺栓的模塊設計使產品易于安裝，采用粘貼或螺栓固定的方法將產品安裝在耐磨設備上。
Rubber backed ceramic sheets are designedand manufactured by vulcanising 92% or 95% wear-resistant alumina tiles intothe rubber backing. Alumina works against erosion whereas rubber on back take the impact load and thus after impact the slidingabrasion will be taken care of by alumina tile .
Thebenefits of rubber backed ceramic sheets are that the alumina is exposed to thematerial flow and is fully ded into a specially designed rubber backing.
The rubberbacking also assists in reducing noise levels within the plant and isengineered to resist the impact in each individual application. Modular bolt-insections for easy installation, Just bond or bolt them on as you would anyother traditional steel or rubber lining plate.
產品參數/Technical data:
氧化鋁陶瓷片Alumina ceramic tile:
橡膠Rubber:
鋼板/Steel：Q235
產品規格/Specification Available:：
常用規格的庫存有：250 x 250mm, 300 x 300mm, 250 x 500mm,500 x 500mm等；
陶瓷厚度/Alumina ceramic tile：4---50mm
橡膠厚度/Rubber：5---20mm
鋼板厚度/Steel：4---8mm
應用領域/ Applications:
適用于火力發電廠的輸煤、排灰系統及冶金鋼鐵業的輸料、配料系統中的料倉、料斗等設備做防磨襯板。陶瓷橡膠復合板能扭曲、劃割，適用于安裝各種異形設備，并具有耐水、耐弱酸堿等優異性能。
Rubber backed ceramic sheets are suitable for applications inareas of severe impact and areas of high abrasion.
High alumina ceramic deliver extra abrasion resistance andextend wear life.
